Getting your volleyball court measurement right is the first step to building a court people actually enjoy playing on. Whether you’re a school setting up a new sports facility, a startup building a sports academy, or a homeowner adding a court in your backyard, the exact dimensions matter more than most people think. A court that’s even slightly off in size, net height, or free space can change how the game plays out and whether it’s safe for the players on it.

This guide covers the official volleyball court measurement standards, along with practical advice on flooring, material choices, and construction. You’ll also find separate numbers for indoor and beach volleyball, so you know exactly what to work with no matter which format you’re building for.

Standard Volleyball Court Measurement for Indoor Play

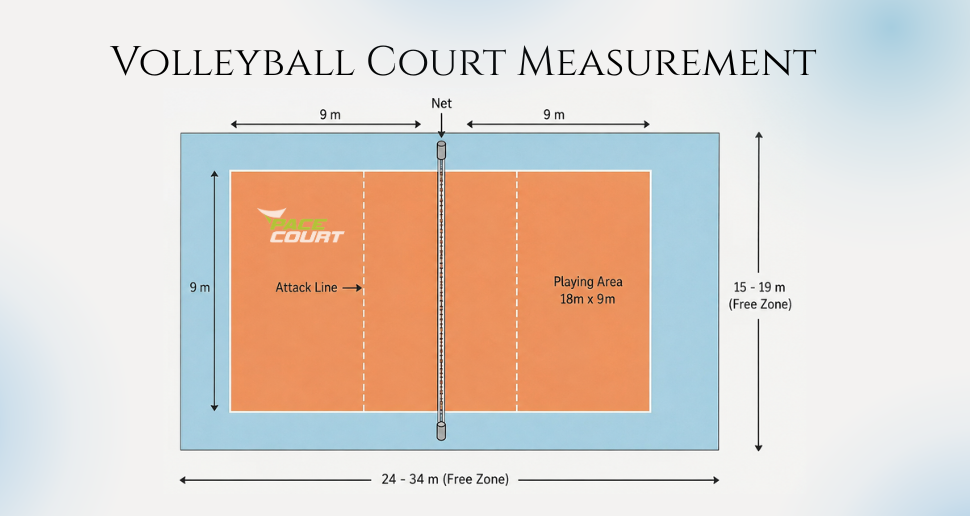

An indoor volleyball court is a rectangle measuring 18 metres long and 9 metres wide. A centre line runs directly under the net and splits the court into two equal halves, each measuring 9 x 9 metres.

Court Dimensions and Boundary Lines

All boundary lines are 5 cm wide and must be a light colour that stands out from the floor. Both side lines and end lines sit inside the total court dimensions, not outside them. This small detail trips up a lot of first-time builders, so it’s worth marking carefully.

Net Height and Net Specifications

The net sits at the centre line and its top edge is set at:

• 2.43 metres for men’s matches
• 2.24 metres for women’s matches

Net height is measured from the centre of the court. It can’t vary by more than 2 cm across the width of the net. The net itself is roughly 1 metre wide and runs between 9.5 and 10 metres long. Antennae rods, 1.8 metres long, sit at each end of the net directly above the side lines to mark the legal crossing space for the ball.

Attack Line, Service Zone and Front Zone

The attack line sits 3 metres back from the centre line on each side and marks the front zone, where back-row players face restrictions on attacking the ball. Behind each end line sits the service zone, a 9-metre-wide strip where players serve from. This zone extends all the way to the edge of the free zone.

Free Zone and Ceiling Clearance

The free zone is the open space surrounding the court where players can chase down balls and dive for digs. At a minimum, it must be 3 metres wide on all sides. Above the court, the free playing space (ceiling clearance) needs to be at least 7 metres high with no obstructions like beams, lights, or banners hanging into that space.

Volleyball Court Measurement by Level of Play

The core court size stays the same everywhere, but the free zone and ceiling height requirements grow as the competition level gets more serious. Here’s how the numbers stack up:

If you’re building a facility that might host tournaments down the line, plan for the larger free zone and ceiling clearance from day one. Retrofitting a hall to add more free space later is far more expensive than building it right the first time.

Beach Volleyball Court Measurement

Beach volleyball uses a smaller footprint since teams usually play with two players a side instead of six. The sand court measures 16 metres by 8 metres, split into two 8 x 8 metre halves by the centre line.

There’s no attack line marked in the sand, since players can attack the ball from anywhere on their side. The free zone should be at least 3 metres wide for recreational play, growing to 5-6 metres for official competitions, with a minimum ceiling clearance of 12.5 metres at top-level events. The sand itself should sit at a consistent, even depth and stay free of stones, shells, or anything else that could injure a diving player.

Volleyball Court Flooring: Choosing the Right Material

Once your volleyball court measurement is locked in. Flooring is the next big decision. The right volleyball court material affects ball bounce, player grip, joint impact, and how long the surface lasts.

Wooden Flooring

Solid hardwood, usually maple, beech, or ash, is the traditional choice for competitive indoor courts. It offers consistent ball bounce and good shock absorption. It can be sanded and refinished over the years. It’s also the most expensive option and needs regular upkeep.

Synthetic and PU Flooring

Polyurethane and PVC/vinyl sports flooring have become popular alternatives to wood. They’re easier to install, need less maintenance, and still offer solid grip and bounce. Many multi-purpose sports halls choose synthetic flooring because it holds up well across different sports, not just volleyball.

Modular Tile Flooring

Interlocking sports tiles are a budget-friendly option, especially for backyard courts or facilities that need to install a court quickly. They’re easy to replace section by section if damaged, though they generally don’t match the performance feel of wood or poured synthetic surfaces.

Acrylic Flooring Options

For acrylic flooring that aren’t played on sand, acrylic-coated concrete are the common choices. These surfaces need a slight slope, usually a few millimetres per metre, so rainwater drains off instead of pooling.

Volleyball Court Construction: Step by Step

Volleyball court construction isn’t just about pouring a slab and painting lines. Here’s a practical order of operations:

1. Survey and level the full site — including the free zone, not just the court itself. A common error is treating the free zone as optional space to figure out later.
2. Mark the entire footprint before any construction begins, so you can confirm the total area fits your site.
3. Build the right sub-base for your chosen flooring — a concrete slab for tiles or synthetic sheets, or a proper sprung sub-floor system for hardwood.
4. Install the flooring material, letting it settle and acclimatise if it’s wood.
5. Mark all court lines at exactly 5 cm wide, in a colour that contrasts clearly against the floor.
6. Set up the posts and net, positioning posts 0.5 to 1 metre outside the side lines, and double-check net height at the centre and at both ends.
7. Check lighting levels, particularly for indoor courts meant for serious play — dim or uneven lighting makes it hard to track the ball.
8. Plan drainage for any outdoor build, so the surface stays safe and playable after rain.

Common Mistakes to Avoid

• Measuring only the court and forgetting to account for the free zone around it.
• Getting the net height slightly wrong — even a couple of centimetres changes gameplay.
• Choosing flooring based on price alone, without checking grip and shock absorption.
• Placing posts too close to the side lines, which creates a safety hazard for players diving near the boundary.
• Ignoring ceiling height when converting an existing hall into a volleyball facility.
• Ignoring drainage on outdoor courts, leading to puddles and slippery patches.
• Skipping a check with the relevant governing body’s specifications before building a court meant for competitive matches.

Actionable Tips for Getting Your Measurements Right

• Use a proper measuring tape or laser measure, and check every dimension at least twice before marking anything permanently.
• Chalk out the full free-zone footprint before construction starts, not just the playing court.
• Match your flooring choice to how the court will actually be used. Hardwood for a dedicated competitive venue, synthetic or PU for multi-use halls, and modular tiles for backyard or budget builds.
• If you’re planning to host sanctioned matches, confirm current specifications with your national volleyball federation, such as the Volleyball Federation of India, since local competition rules can add requirements beyond the base measurements.
• Factor ongoing maintenance costs into your budget from the start, not just the installation cost.

Final Thoughts

Getting your volleyball court measurement right is less about guesswork and more about following a clear set of standards, then adapting them sensibly to your space and budget. Start with the core 18 x 9 metre court, add the right free zone and ceiling clearance for your level of play. Choose flooring that matches how often and how seriously the court will be used. Get those basics right, and everything else, from construction to long-term maintenance, becomes a lot easier to manage.
